PRODUCTS | Storages

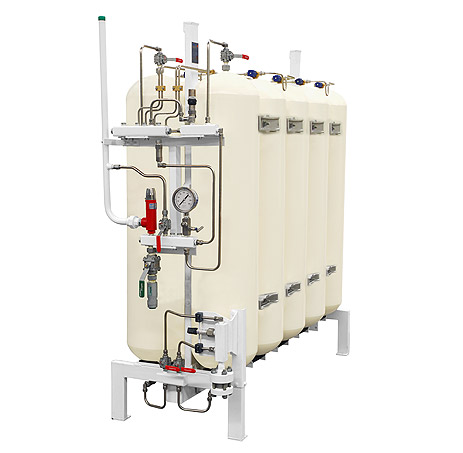

Standard Storage


SIZE

Height 2235mm – Width 1100mm – Length 2140mm

WEIGHT

2.000 Kg


FEATURES

It is a 10-cylinder set of 125 lts each, assembled on self supporting skid used to store compressed gas.
Within this equipment there is a device that controls compressor start/stop pressure.
The set of storage cylinders can be modular, making the storage capacity of your station flexible.
Pressure sensor.
Manometer.
Safety valve.
Over-flow valve.
Cylinder stop valve.
Non-return valve.
Highly resistant stainless steel pipelines.



OPTIONAL

Double neck cylinder according to current regulations of each country.
Drain system.
Priority valve and accessories.
Pressure transducer.
Knock down tank. Liquid divider for draining system.

For more information please click on www.asprognc.com

Back to top

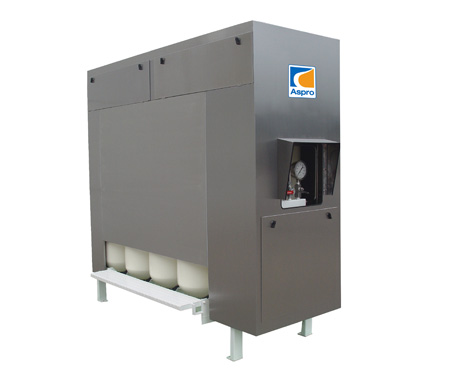

Enclosured Storage


SIZE

Height 2350mm – Width 950mm – Length 2250mm

WEIGHT

2.300 Kg.


FEATURES

It is a 10-cylinder set of 125 lts each, assembled on self supporting skid used to store compressed gas.
Within this equipment there is a device that controls compressor start/stop pressure
Covered with a 4-door stainless steel enclosure suitable for outdoor that has access doors to make maintenance easier.
The set of storage cylinders can be modular, making the storage capacity of your station flexible.
Pressure sensor.
Manometer.
Safety valve.
Over-flow valve.
Cylinder stop valve.
Non-return valve.
Highly resistant stainless steel pipelines.



OPTIONAL

Double neck cylinder according to current regulations of each country.
Drain system.
Priority valve and accessories.
Pressure transducer.
Knock down tank. Liquid divider for draining system.

For more information please click on www.asprognc.com

Back to top
