PRODUCTS | Compressors

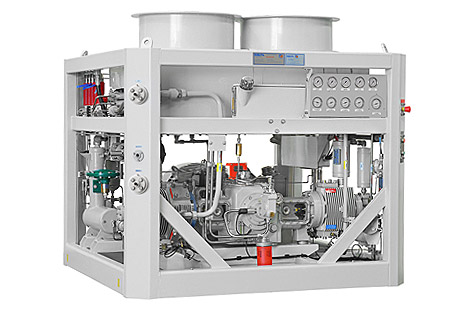

IODM 70-2

SIZE

Height 1800mm – Width 1850mm – Length 1850mm

WEIGHT

2.500 Kg.

FEATURES

	2 stages horizontal throws reciprocating compressor.
	Suction pressure: from 28 to 60 bar.
	Air-cooled.
	Lubrication System.
	Main motor power: 75/90 kW (100/125 HP).

OPTIONAL

	Acoustic enclosure.
	Gas detector.
	Pre-lubricator.
	Spark proof guard flywheel.
	High-temperature pipes protection.
	Explosion proof lightning.
	Fire fighting system.
	Flame detector.
	Gas flow meter.
	Priority panel for discharge to storage or dispensers.
	Low-pressure switch to by pass regulating valve.
	Inter-stage pressure transducers.
	Temperature transducer.
	Crankcase oil level sensor.
	Vent pipe with flame arrester.
	Gas sampling system.
	Lube oil heater.
	Pressure reducing system.
	Temperature switch.
	Other options, according to customer’s request.
