Standard

SIZE

Height 2000mm – Width 700mm – Length 600mm

WEIGHT

170 Kg.

FEATURES

	Soft starter system with By Pass contactor within the starter.
	Connection to external capacitor bench.
	Safety system included with emergency stop push button.
	Electric parameters reading.
	Thermo magnetic protection for 3 dispensers.
	Thermal protection for main and fan motor.
	Color Touch Screen panel.
	Zener safety barrier included.
	Prepared for measure pressure and temperature measuring through analogical and digital signals.
	Mechanical door block.
	Louver for natural ventilation.
	Maximum power 160 kW.



OPTIONAL

	Remote supervision system.
	Inter-sage measure of pressure and temperature through analogical signals.

For more information please click on www.asprognc.com

Back to top

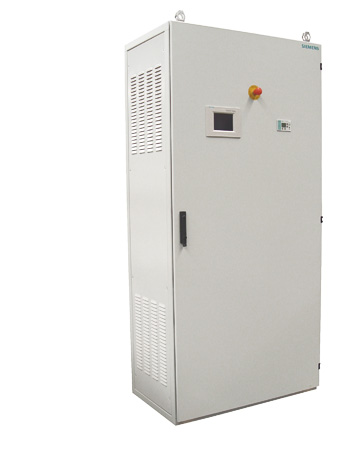

Standard for 5 stages compressors

SIZE

Height 2000mm – Width 1000mm – Length 600mm

WEIGHT

290 Kg.

FEATURES

	Soft starter system with By Pass contactor within the starter.
	Connection to external capacitor bench.
	Safety system included with emergency stop push button.
	Electric parameters reading.
	Thermo magnetic protection for 3 dispensers.
	Thermal protection for main and fan motor.
	Color Touch Screen panel.
	Zener safety barrier included.
	Prepared for measure pressure and temperature measuring through analogical and digital signals.
	Mechanical door block.
	Louver for natural ventilation.
	Pre compressor maxium power: 75 kW.
	Maximum power 160 kW.



OPTIONAL

	Remote supervision system.
	Inter-sage measure of pressure and temperature through analogical signals.

For more information please click on www.asprognc.com

Back to top

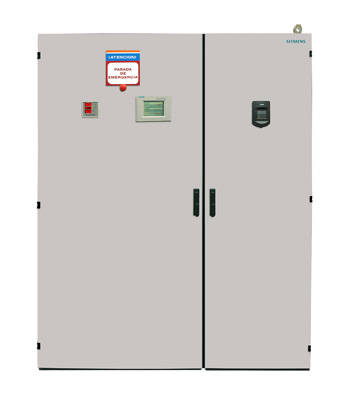

Inverter system

SIZE

Height 2100mm – Width 1700mm – Length 800mm

WEIGHT

560 Kg

FEATURES

	Inverter starting system.
	Safety system included with emergency stop push button.
	Thermo magnetic protection for 3 dispensers.
	Thermal protection for main and fan motor.
	Color Touch Screen panel.
	Zener safety barrier included.
	Prepared for measure pressure and temperature measuring through analogical and digital signals.
	Mechanical door block.
	Louver for natural ventilation.
	Maximum power 160 kW.



OPTIONAL

	Remote supervision system.
	Inter-sage measure of pressure and temperature through analogical signals.

For more information please click on www.asprognc.com

Back to top
