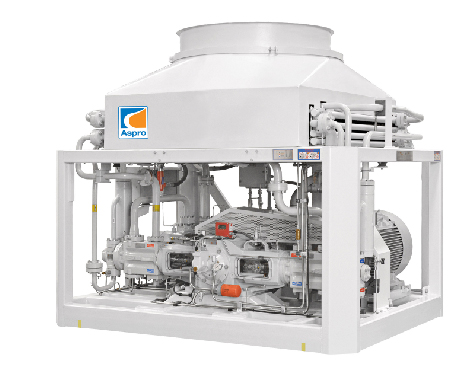

IODM 115-2



SIZE

Height 2345mm – Width 2100mm – Length 2600mm

WEIGHT

4.600 Kg.



FEATURES

	2 stages horizontal throws reciprocating compressor.
	Suction pressure: from 19 to 45 bar.
	Air-cooled.
	Lubrication System.
	Condensers on each compression stage.
	Main motor power: 90/160 kW (125/220 HP).



OPTIONAL

	Acoustic enclosure.
	Gas detector.
	Pre-lubricator.
	Spark proof guard flywheel.
	High-temperature pipes protection.
	Explosion proof lightning.
	Fire fighting system.
	Flame detector.
	Gas flow meter.
	Priority panel for discharge to storage or dispensers.
	Low-pressure switch to by pass regulating valve.
	Inter-stage pressure transducers.
	Temperature transducer.
	Crankcase oil level sensor.
	Vent pipe with flame arrester.
	Gas sampling system.
	Lube oil heater.
	Pressure reducing system.
	Temperature switch.
	Other options, according to customer’s request.
