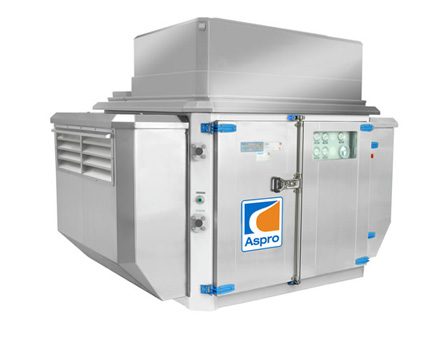

IODM 70-4 DB

Two functions in the same compressor: Standard compressor and Booster.



SIZE

Height 2200mm – Width 2950mm – Length 2050mm

WEIGHT

3.800 Kg. .



FEATURES

SUPPLYING FROM GAS TRANSPORT UNIT
	Suction pressure: from 12 to 250 ba.
SUPPLYING FROM GAS PIPELINE
	Suction pressure: from 1,5 to 4 bar.
	4 stages horizontal throws reciprocating compressor.
	Air-cooled .
	Lubrication System
	Main motor power: 75/90 kW (100/125 HP)



OPTIONAL

	Acoustic enclosure
	Gas detector
	Pre-lubricator
	Spark proof guard flywheel
	High-temperature pipes protection
	Explosion proof lightning
	Fire fighting system
	Flame detector
	Gas flow meter
	Priority panel for discharge to storage or dispensers
	Low-pressure switch to by pass regulating valve
	Inter-stage pressure transducers
	Temperature transducer
	Crankcase oil level sensor
	Vent pipe with flame arrester
	Gas sampling system
	Lube oil heater
	Pressure reducing system
	Temperature switch
	Other options, according to customer's request
