PRODUCTS | Compressors

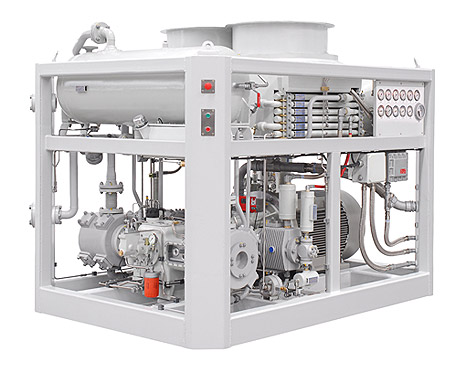

IODM 70-5

SIZE

Height 2030mm – Width 1860mm – Length 2600mm

WEIGHT

4.600 Kg.

FEATURES

	5 stages horizontal throws reciprocating compressor.
	Suction pressure: from 0,2 to 1 bar.
	Air-cooled.
	Lubrication System.
	Main motor power: 110/132 kW (150/175 HP).

OPTIONAL

	Acoustic enclosure.
	Gas detector.
	Pre-lubricator.
	Spark proof guard flywheel.
	High-temperature pipes protection.
	Explosion proof lightning.
	Fire fighting system.
	Flame detector.
	Gas flow meter.
	Priority panel for discharge to storage or dispensers.
	Low-pressure switch to by pass regulating valve.
	Inter-stage pressure transducers.
	Temperature transducer.
	Crankcase oil level sensor.
	Vent pipe with flame arrester.
	Gas sampling system.
	Lube oil heater.
	Pressure reducing system.
	Temperature switch.
	Other options, according to customer’s request.
